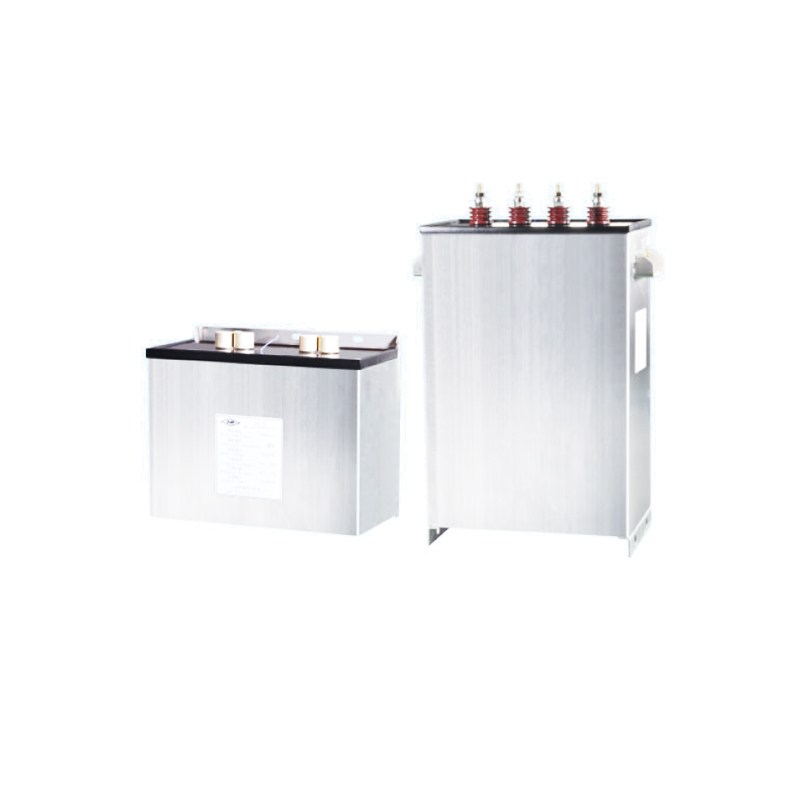

DKMJ6 Type High voltage large-capacity dc storage capacitors
*Special services
1.Customized service, including packaging, label
2.OEM
3.Semi-finished product, such as film, winding elements
Application:
Products are suitable for DC energy storage and flter of the inverter of high-power LRT,
ship and power station，etc
Characteristics:
It uses the advanced self-healing metalized safety film,resin filling,dry structure.
large capacity,low ESR,low ESL,small size,long life and safety and reliable.
Technical Specification:
| Configuration | Stainless stell shell,Dry,Flame Petandant and Protective Device |
| Temperature | -40℃~70℃ |
| Capacitance Tolerance | ±5% ±10% |
| Dissipation Factor | ≤0.003(at 100Hz 1V) |
| Testing Voltage | T-T:1.5Un 10s 25℃ |
| Equivalent Series Resistance(ESR) | ＜2mΩ |
| Equivalent Series Inductance(Ls) | ＜100nH |
| Expected Service Life | 100000hours |
DKMJ6 Type High voltage large-capacity dc storage capacitors
*Special services
1.Customized service, including packaging, label
2.OEM
3.Semi-finished product, such as film, winding elements
Application:
Products are suitable for DC energy storage and flter of the inverter of high-power LRT,
ship and power station，etc
Characteristics:
It uses the advanced self-healing metalized safety film,resin filling,dry structure.
large capacity,low ESR,low ESL,small size,long life and safety and reliable.
Technical Specification:
| Configuration | Stainless stell shell,Dry,Flame Petandant and Protective Device |
| Temperature | -40℃~70℃ |
| Capacitance Tolerance | ±5% ±10% |
| Dissipation Factor | ≤0.003(at 100Hz 1V) |
| Testing Voltage | T-T:1.5Un 10s 25℃ |
| Equivalent Series Resistance(ESR) | ＜2mΩ |
| Equivalent Series Inductance(Ls) | ＜100nH |
| Expected Service Life | 100000hours |
