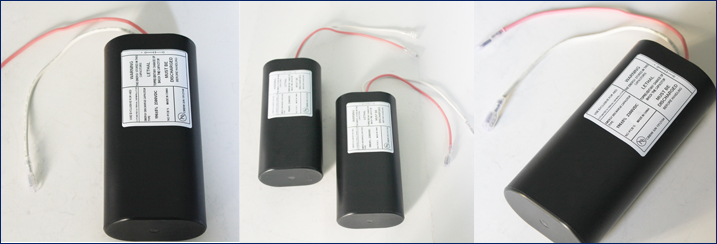

AED pacemaker

Looking for an easy way to extend your home? Let our experts do the job and help you!

*Special services

1.Customized service, including packaging, label

2.OEM

3.Semi-finished product, such as film, winding elements

Application:

Products are suitable for external defibrillator application.

Characteristics:

1.selects high temperature and high quality polypropylene film as the medium

2.use the advanced coating process

3.two different configuration:

1)CBB98 uses dry structure, plastic case

2)CBB99 uses oil-filled, Aluminum case

4.Max working voltage :6000VDC

5.Max energy storage:more than 500J

6. small size, long life

TECHNICAL SPECIFICATIONIE

Project	CBB99	CBB98
Configuration	Auminum Case, Oil Flled	Plastic Case,Dry
Operating Temperature	-20℃~55℃	-20℃~55℃
Capacitance Tolerance	±5%	±5%
Shock Testing	IEC 68-2-27	IEC 68-2-27
Peak Operating Voltage	1.067Un	1.067Un
Operating Almospheric Pressure	375 to 760 mmHg,appx, 4500m under	appx,4500m
Test Voltage	T-T: 1.1Un 60s T-C:2.17Un 10s	T-T: 1.1Un 60s
Pulse Life Rating	1.0E+4 Pulses @ 25℃	1.0E+4 Pulses @ 25℃
Max Dissipation Factor	1.5% @ 100Hz 25℃	1.5% @ 100Hz 25℃

SPECIFICATION OF MAIN PRODUCTS

Rated Capacitance (uF)	Rated Voltage (Vdc )	Joules （J）
Rated Capacitance (uF)	Rated Voltage (Vdc )	Joules （J）
32	5300	449
400	1500	450
185	2350	511
195	2300	516
185	2300	489
195	2300	516
* The Above Form Shows Only Part of the Spcicaions and Can Design on the Basis of Custom Requirement.OVERALL SIZE
