Capacitor for Defibrillator AED-CBB98 99

Characteristics:
1.selects high temperature and high quality polypropylene film as the medium
2.use the advanced coating process
3.two different configuration:

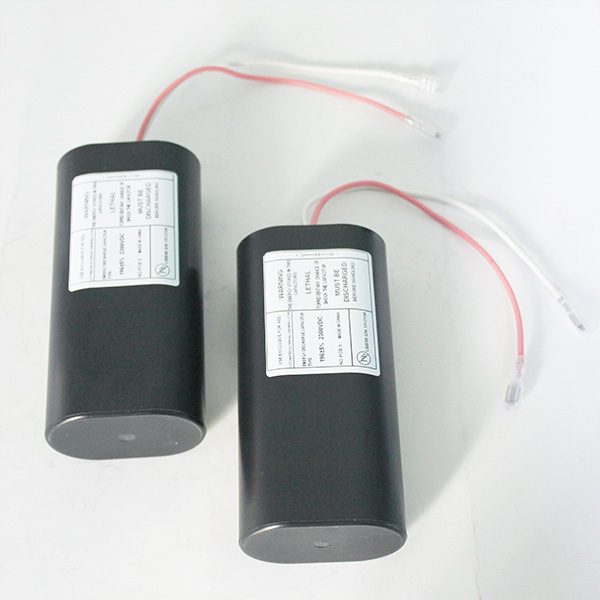

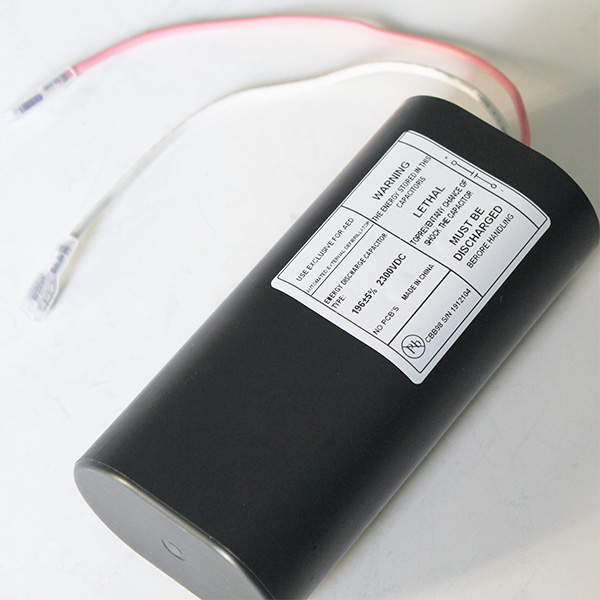

1)CBB98 uses dry structure, plastic case

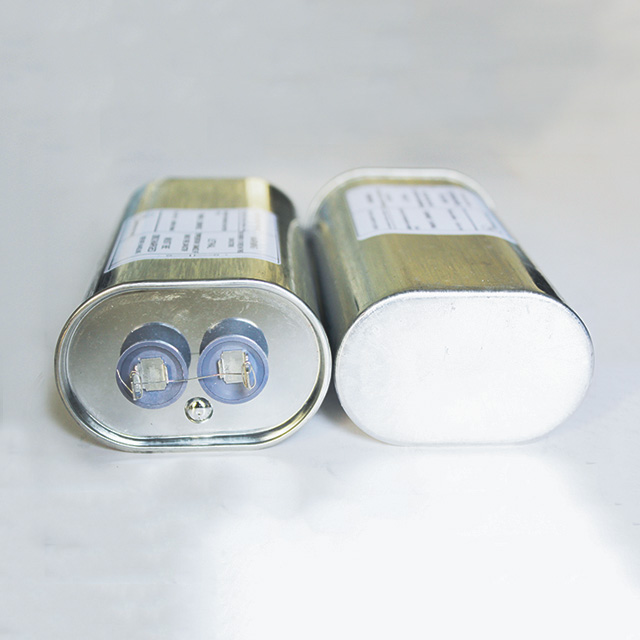

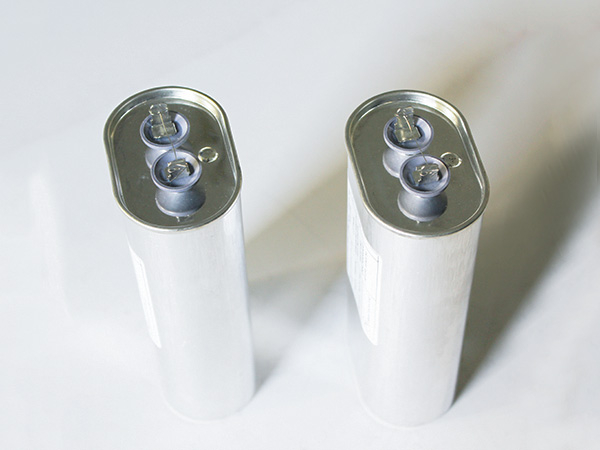

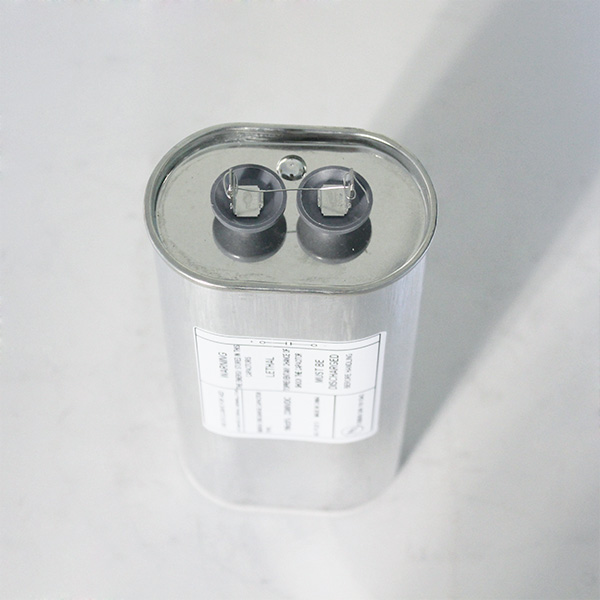

2)CBB99 uses oil-filled, Aluminum case
4.Max working voltage :6000VDC
5.Max energy storage:more than 500J
6. small size, long life
Availability:
Inquire

——CBB99  high voltage energy discharge capacitor——

 Replace aerovox 32uf

*Special services

1.Customized service, including packaging, label

2.OEM

3.Semi-finished product, such as film, winding elements

Application:

Products are suitable for external defibrillator application.


Characteristics:

1.selects high temperature and high quality polypropylene film as the medium

2.use the advanced coating process

3.two different configuration:

1)CBB98 uses dry structure, plastic case

2)CBB99 uses oil-filled, Aluminum case

4.Max working voltage :6000VDC

5.Max energy storage:more than 500J

6. small size, long life


 TECHNICAL SPECIFICATIONIE

ProjectCBB99CBB98
ConfigurationAuminum Case, Oil Flled

Plastic Case,Dry

Operating Temperature-20℃~55℃-20℃~55℃
Capacitance Tolerance±5%±5%
Shock TestingIEC 68-2-27IEC 68-2-27
Peak Operating Voltage1.067Un1.067Un

Operating Almospheric Pressure

375 to 760 mmHg,appx, 4500m underappx,4500m
Test Voltage

T-T: 1.1Un 60s

T-C:2.17Un 10s

T-T: 1.1Un 60s
Pulse Life Rating1.0E+4 Pulses @ 25℃1.0E+4 Pulses @ 25℃
Max Dissipation Factor1.5% @ 100Hz 25℃1.5% @ 100Hz 25℃


 SPECIFICATION OF MAIN PRODUCTS

Rated Capacitance

(uF)

Rated Voltage

(Vdc )

Joules

（J）

325300
449
4001500450
1852350511
1952300516
1852300489
1952300516
* The Above Form Shows Only Part of the Spcicaions and Can Design on the Basis of Custom Requirement.OVERALL SIZE


仓储包装

Q: When can we expect delivery?

A:  The delivery date of the sample is within 14 days
