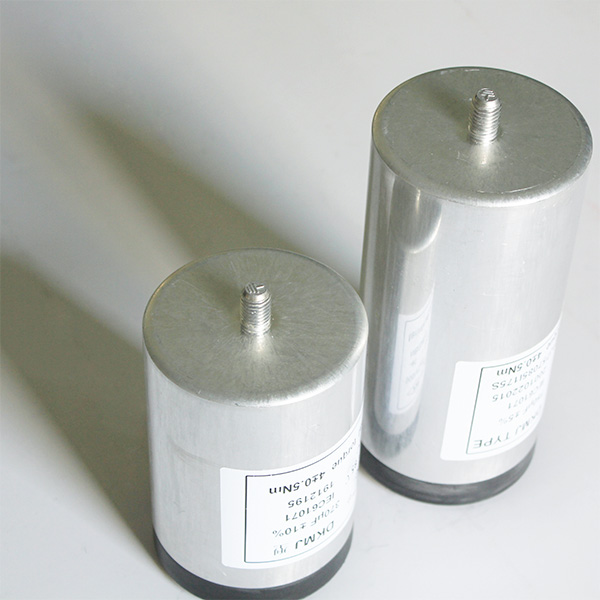

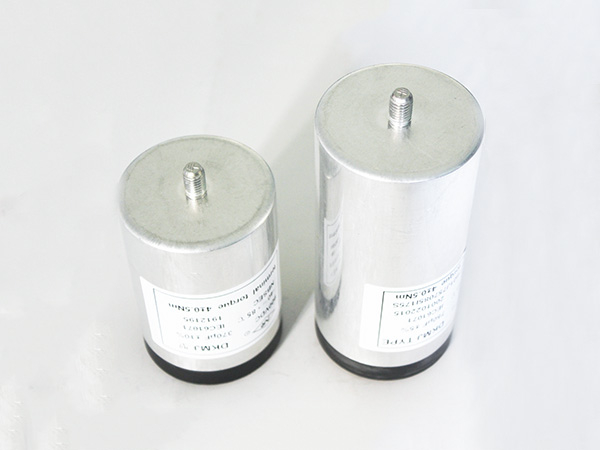

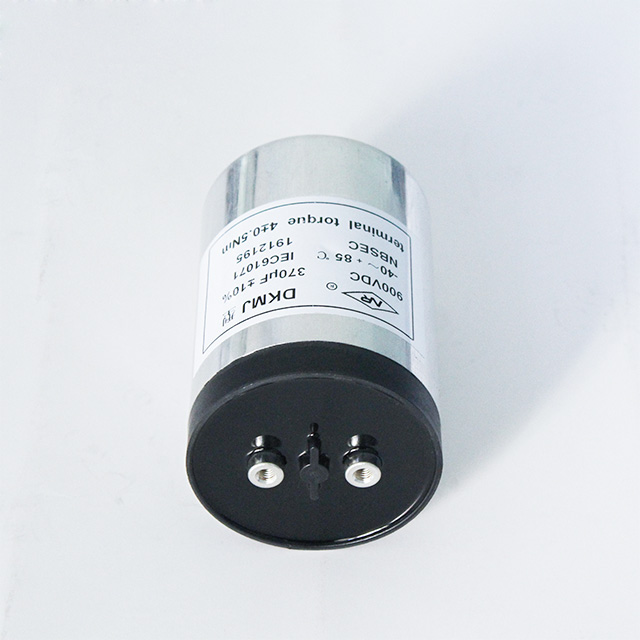

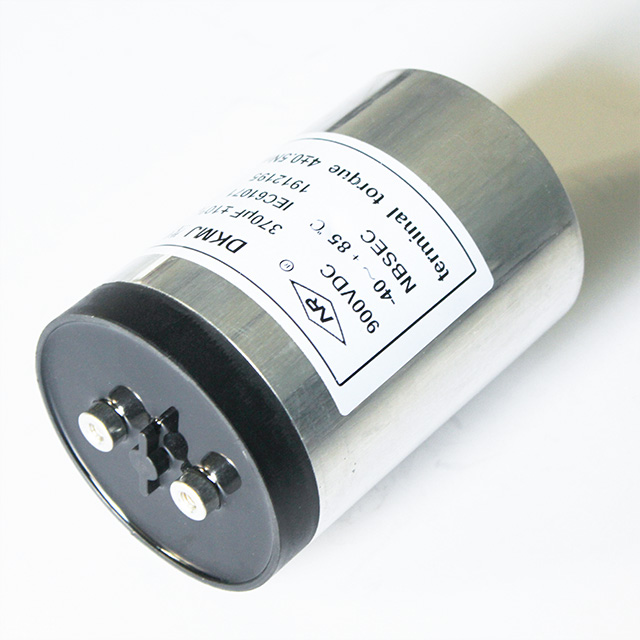

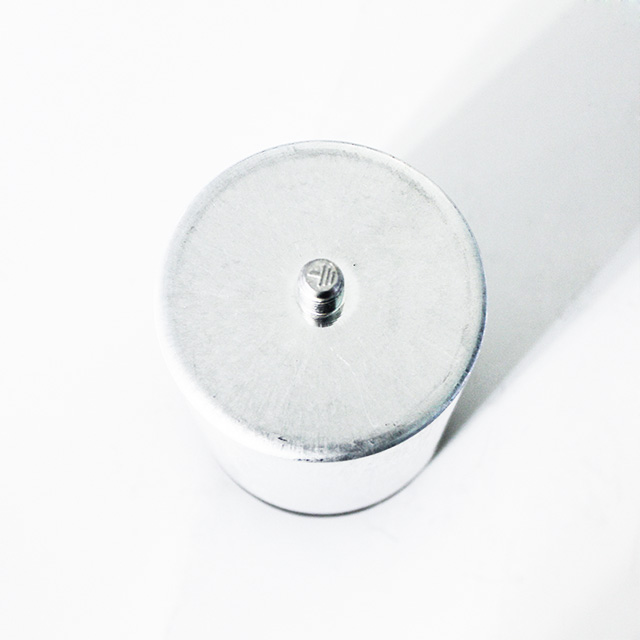

170uf 1100vdc DKMJ type metallized polypropylene film capacitor
for propulsion and braking system
*Special services
1.Customized service, including packaging, label
2.OEM
3.Semi-finished product, such as film, winding elements
Application:
1. Use in DC-link circuits,can replace electrolytic capacitor
2. Suitable for photovoltaic and wind power inverter,high-voltage inverter
3. High frequency switching power supply,UPS uninterruptible power supply,
EPS emergency power supply,DC regulated power supply
4.Reactive power compensator SVG.Active power filter APF;EV and HEV's smoothing filter.
Characteristics:
1. select the advanced self-healing metalized safety film
2. resin filling,dry structure.
3. Product performance is stable,safety and reliable
4. Low ESR,Low ESL,long life.
Technical Specification:
| Configuration | Aluminum Shell,Dry,Flame Retardant and Protective Device |
| Temperarure | -40℃~85℃ |
| Capacitance Tolerance | ±5% ±10% |
| Dissipation Factor | ≤0.003(at 100Hz 1V) |
| Testing Voltage | T-T:1.5Un 10s 25℃ T-C:2Un+1000VAC 60s 25℃ |
| Equivalent Series Resistance(ESR) | 0.8~3.0mΩ |
| Equivalent Series Inductance(Ls) | ≤65nH |
| Expected Service Life | 100000 hours |
170uf 1100vdc DKMJ type metallized polypropylene film capacitor
for propulsion and braking system
*Special services
1.Customized service, including packaging, label
2.OEM
3.Semi-finished product, such as film, winding elements
Application:
1. Use in DC-link circuits,can replace electrolytic capacitor
2. Suitable for photovoltaic and wind power inverter,high-voltage inverter
3. High frequency switching power supply,UPS uninterruptible power supply,
EPS emergency power supply,DC regulated power supply
4.Reactive power compensator SVG.Active power filter APF;EV and HEV's smoothing filter.
Characteristics:
1. select the advanced self-healing metalized safety film
2. resin filling,dry structure.
3. Product performance is stable,safety and reliable
4. Low ESR,Low ESL,long life.
Technical Specification:
| Configuration | Aluminum Shell,Dry,Flame Retardant and Protective Device |
| Temperarure | -40℃~85℃ |
| Capacitance Tolerance | ±5% ±10% |
| Dissipation Factor | ≤0.003(at 100Hz 1V) |
| Testing Voltage | T-T:1.5Un 10s 25℃ T-C:2Un+1000VAC 60s 25℃ |
| Equivalent Series Resistance(ESR) | 0.8~3.0mΩ |
| Equivalent Series Inductance(Ls) | ≤65nH |
| Expected Service Life | 100000 hours |
