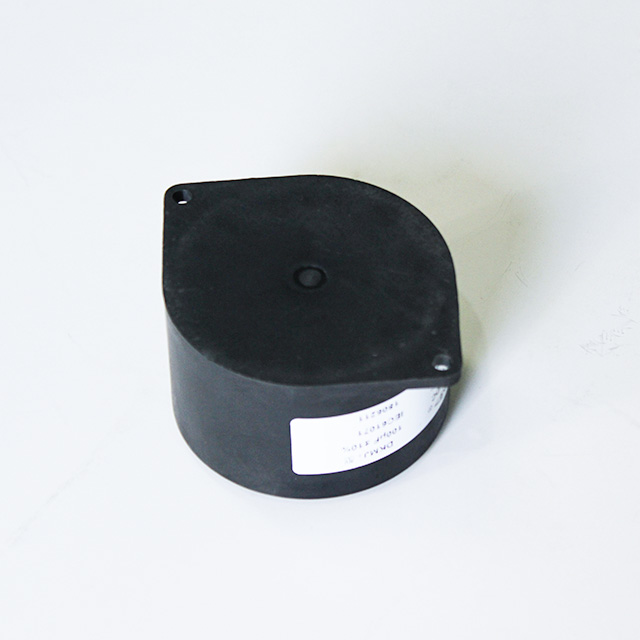

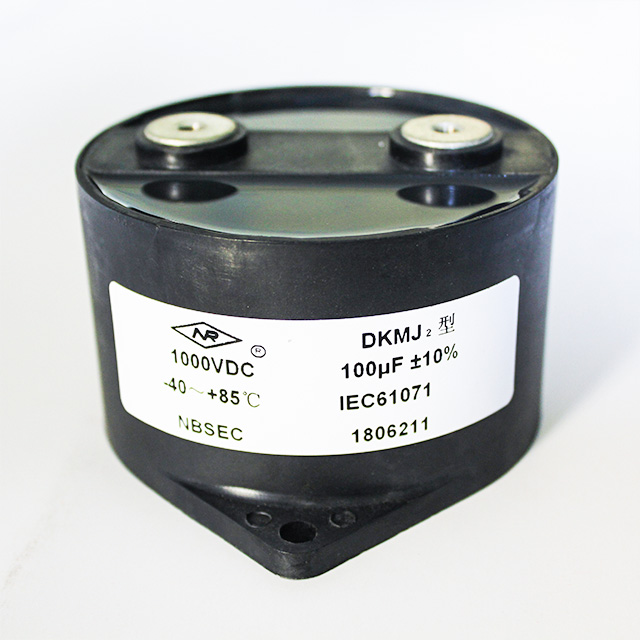

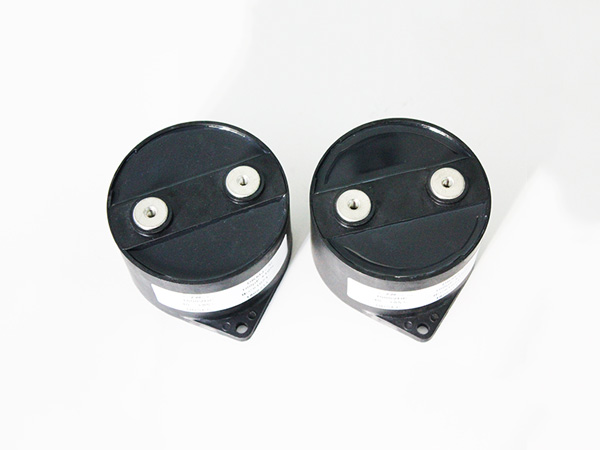

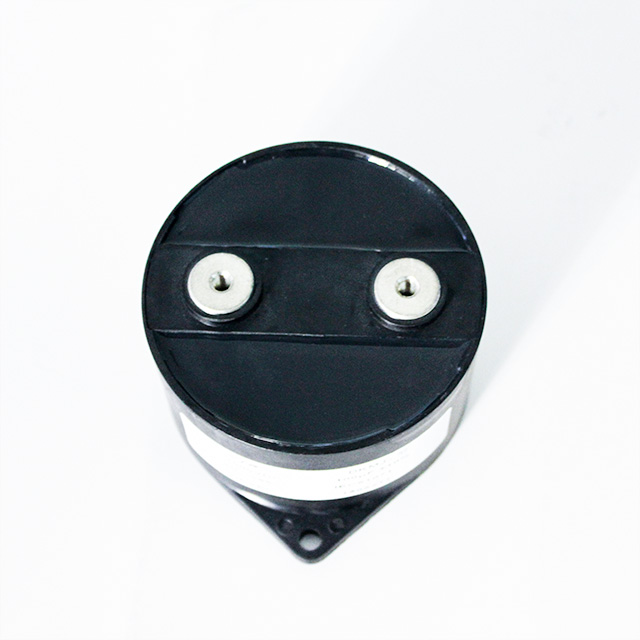

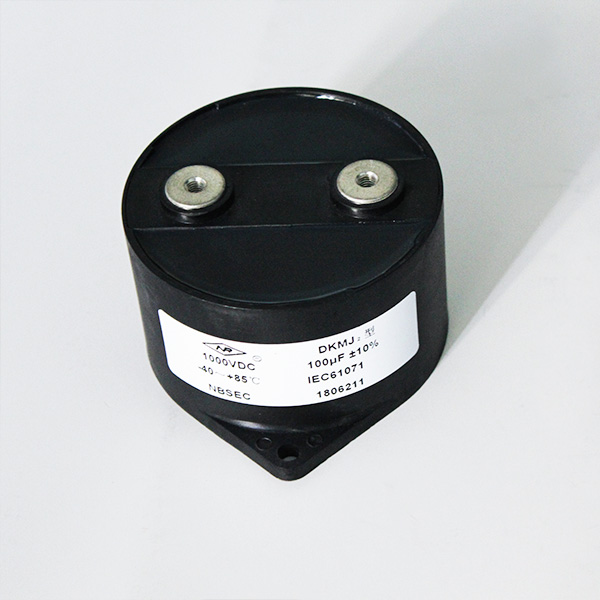

DKMJ2 Type high quality metallized polypropylene film capacitor for EV & CHEV
*Special services
1.Customized service, including packaging, label
2.OEM
3.Semi-finished product, such as film, winding elements
Application:
Products are suitable for photovoltaic and wind power inverter;Switching power supply,
UPS uninterruptible power supply,EPS emergency power supply,DC regulated power supply;EV and HEV's smoothing filter.
Characteristics:
It selects the advanced self-healing metalized safety film,resin filling,dry structure.
Product performance is stable,safety and reliable;Low ESR,which can withstand larger
ripple currents;Low ESL,long life.
Technical Specification:
| Configuration | Plastic shell,Dry,Flame Retardant and Protective Device |
| Temperature | -40℃~85℃ |
| Capacitance Tolerance | ±5% ±10% |
| Dissipation Factor | ≤0.003(at 100Hz 1V) |
| Testing Voltage | T-T:1.5Un 10s 25℃ T-C:1.5Un+1000VAC 60s 25℃ |
| Equivalent Series Resistance(ESR) | 0.5~1.5mΩ |
| Equivalent Series Inductance(Ls) | ≤45nH |
| Expected Service Life | 100000hours |
DKMJ2 Type high quality metallized polypropylene film capacitor for EV & CHEV
*Special services
1.Customized service, including packaging, label
2.OEM
3.Semi-finished product, such as film, winding elements
Application:
Products are suitable for photovoltaic and wind power inverter;Switching power supply,
UPS uninterruptible power supply,EPS emergency power supply,DC regulated power supply;EV and HEV's smoothing filter.
Characteristics:
It selects the advanced self-healing metalized safety film,resin filling,dry structure.
Product performance is stable,safety and reliable;Low ESR,which can withstand larger
ripple currents;Low ESL,long life.
Technical Specification:
| Configuration | Plastic shell,Dry,Flame Retardant and Protective Device |
| Temperature | -40℃~85℃ |
| Capacitance Tolerance | ±5% ±10% |
| Dissipation Factor | ≤0.003(at 100Hz 1V) |
| Testing Voltage | T-T:1.5Un 10s 25℃ T-C:1.5Un+1000VAC 60s 25℃ |
| Equivalent Series Resistance(ESR) | 0.5~1.5mΩ |
| Equivalent Series Inductance(Ls) | ≤45nH |
| Expected Service Life | 100000hours |
