Restrain the self - excited oscillation of linear regulator

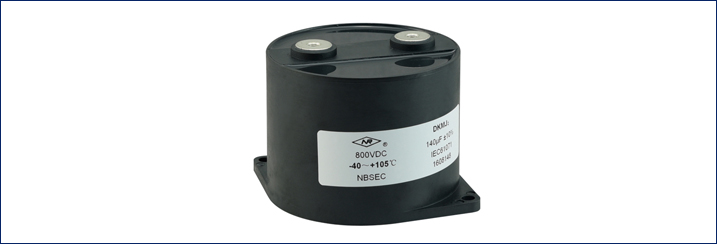

DKMJ2 Type high quality metallized polypropylene film capacitor for EV & CHEV



*Special services

1.Customized service, including packaging, label

2.OEM

3.Semi-finished product, such as film, winding elements


Application:

Products are suitable for photovoltaic and wind power inverter;Switching power supply,

UPS uninterruptible power supply,EPS emergency power supply,DC regulated power supply;EV and HEV's smoothing filter.



Characteristics:

It selects the advanced self-healing metalized safety film,resin filling,dry structure.

Product performance is stable,safety and reliable;Low ESR,which can withstand larger

ripple currents;Low ESL,long life.




Technical Specification:

Configuration Plastic shell,Dry,Flame Retardant and Protective Device
Temperature -40℃~85℃
Capacitance Tolerance

±5%

±10%
Dissipation Factor ≤0.003(at 100Hz 1V)
Testing Voltage

T-T:1.5Un 10s 25℃

T-C:1.5Un+1000VAC 60s 25℃
Equivalent Series Resistance(ESR)  0.5~1.5mΩ
Equivalent Series Inductance(Ls) ≤45nH
Expected Service Life 100000hours
