Ship

Solve the problem caused by load fluctuation

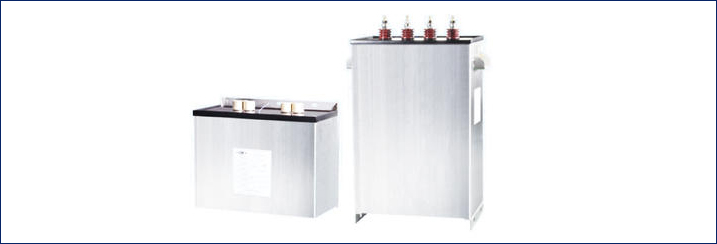

DKMJ6 Type High voltage large-capacity dc storage capacitors

*Special services

1.Customized service, including packaging, label

2.OEM

3.Semi-finished product, such as film, winding elements

Application:

Products are suitable for DC energy storage and flter of the inverter of high-power LRT,

ship and power station，etc

Characteristics:

It uses the advanced self-healing metalized safety film,resin filling,dry structure.

large capacity,low ESR,low ESL,small size,long life and safety and reliable.

Technical Specification:

Configuration	Stainless stell shell,Dry,Flame Petandant and Protective Device
Temperature	-40℃~70℃
Capacitance Tolerance	±5% ±10%
Dissipation Factor	≤0.003(at 100Hz 1V)
Testing Voltage	T-T:1.5Un 10s 25℃
Equivalent Series Resistance(ESR)	＜2mΩ
Equivalent Series Inductance(Ls)	＜100nH
Expected Service Life	100000hours
