Introduction

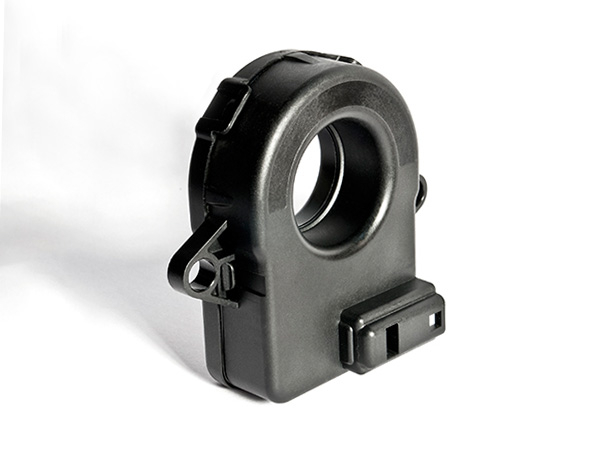

The CAB family is for battery monitoring applications where high accuracy and very low offset are required. It offers galvanic separation between primary circuit (high voltage) and the secondary circuit (12 V system).
Features
● Transducer using Fluxgate technology
● Unlimited over-current capability
● Panel mounting
● Unipolar +12 V battery power supply
● Output signal: High speed CAN (500 kpbs)
● Configurable internal digital low-pass frequency filter
● Configurable CAN speed
● Configurable CAN ID.
Special feature
● Connector type: Tyco AMP 1473672-1.
Advantages
● Offset below 10 mA
● High overall accuracy
−0.1 % error at room temperature (Typ.)
−0.5 % error over temperature range (±3δ)
● Full galvanic separation.
Automotive applications
● Hybrid and electric vehicle battery pack
● Conventional lead-acid batteries
● Accurate current measurement for battery management applications (SOC, SOH, SOF, etc…).
