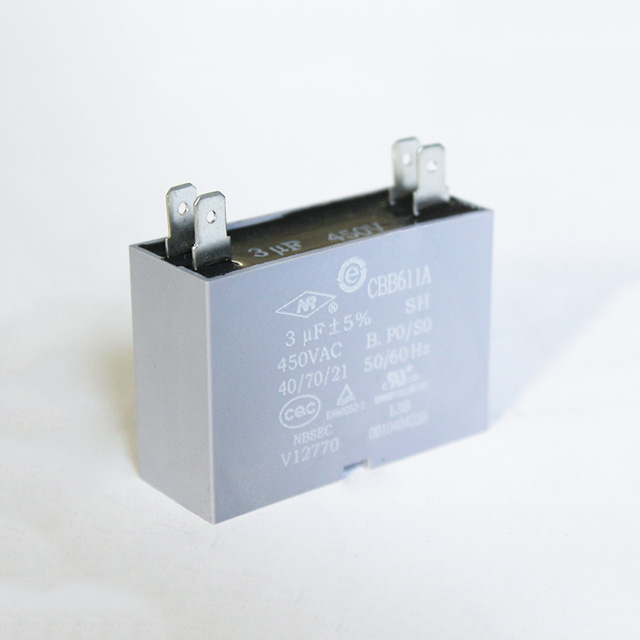

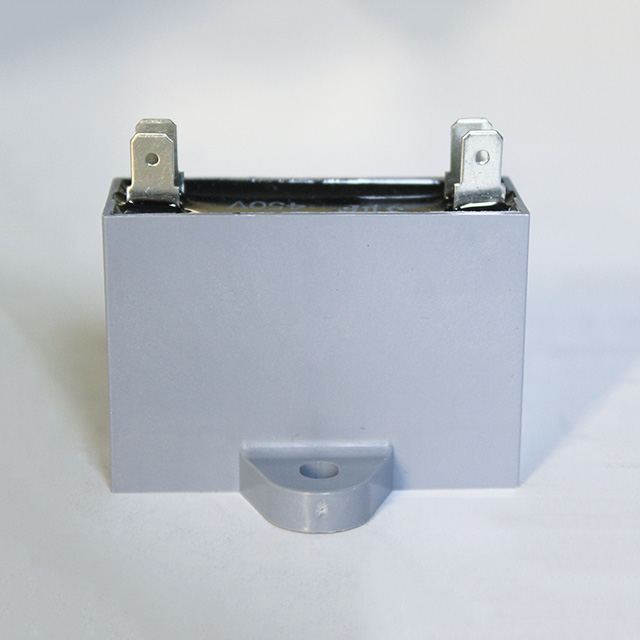

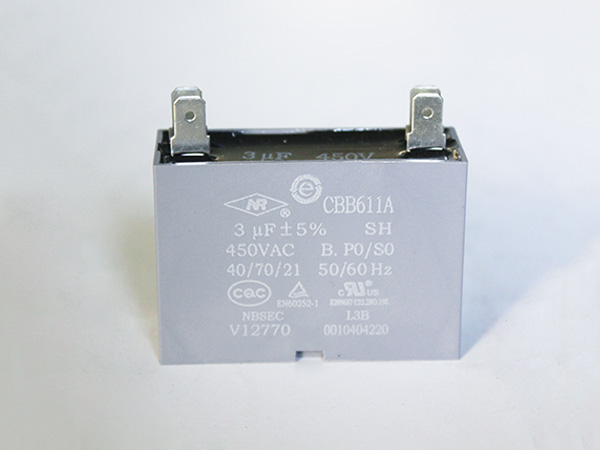

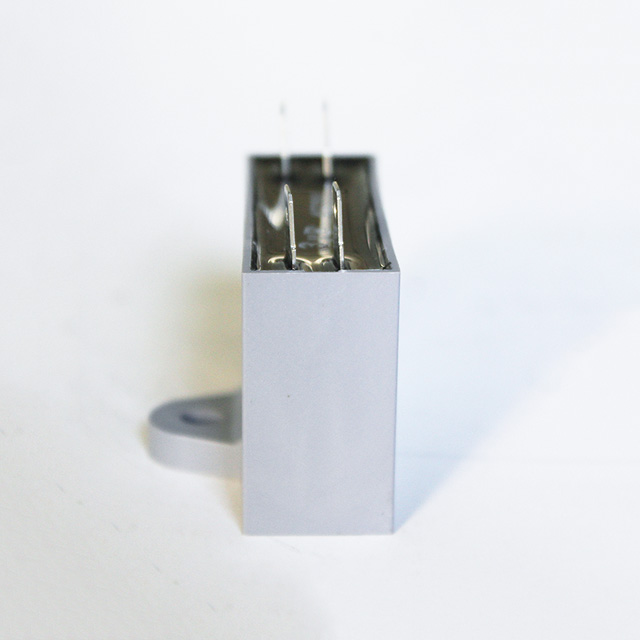

CBB61A

Application
Products are suitable for air-conditioner, air conditioners, freezers, all kinds of motors, fans, electric power tools and fractional horsepower motors, etc.
Characteristics
It selects high-quality polypropylene film as the medium, use advanced zinc-aluminum coating process, epoxy filling, plastic shell (PBT, ABS, etc.) and flame retardancy structure. Products have the male tabs, pins and wire leads, etc. Products are with characteristics of high temperature, low loss and long life, etc. It had passed the CQC, TUV, UL and CUL certification.
Availability:
Inquire

——CBB61A,611A TYPE AC METALIZED CAPACITORS——


*Special services

1.Customized service, including packaging, label

2.OEM

3.Semi-finished product, such as film, winding elements


Application

Products are suitable for air-conditioner, air conditioners, freezers, all kinds of motors, fans, electric power tools and fractional horsepower motors, etc.


Characteristics

It selects high-quality polypropylene film as the medium, use advanced zinc-aluminum coating process, epoxy filling, plastic shell (PBT, ABS, etc.) and flame retardancy structure. Products have the male tabs, pins and wire leads, etc. Products are with characteristics of high temperature, low loss and long life, etc. It had passed the CQC, TUV, UL and CUL certification.


Technical Specification

ConfigurationPlastic Shell, Dry，Flame Retardant
Temperature- 40℃~85℃
Rated Frequency250~500VAC
Capacitance Tolerance±5%
Dissipation FactorTanδ≤0.002(50Hz)
Testing VoltageT-T 2.0Un 2s
Rated Frequency50/60Hz
Safety ClassP0
Life ClassB、C级
