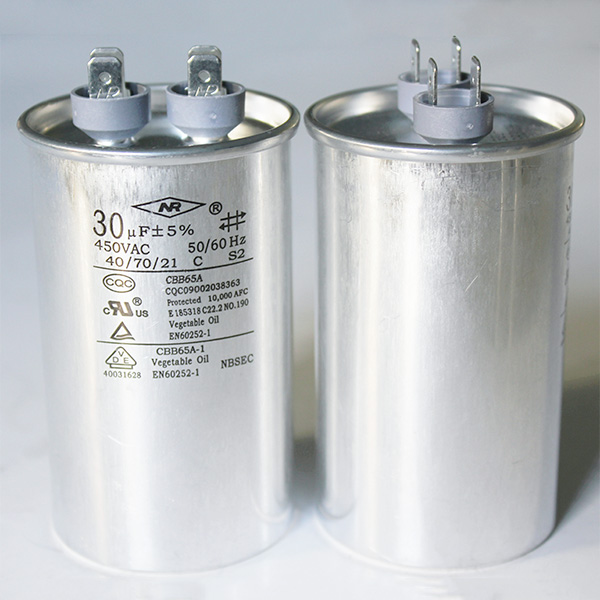

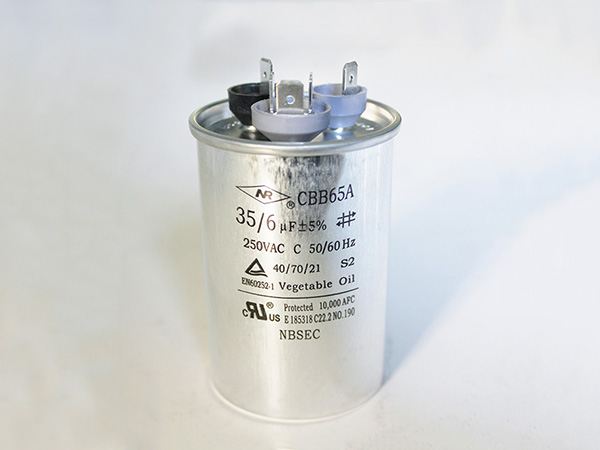

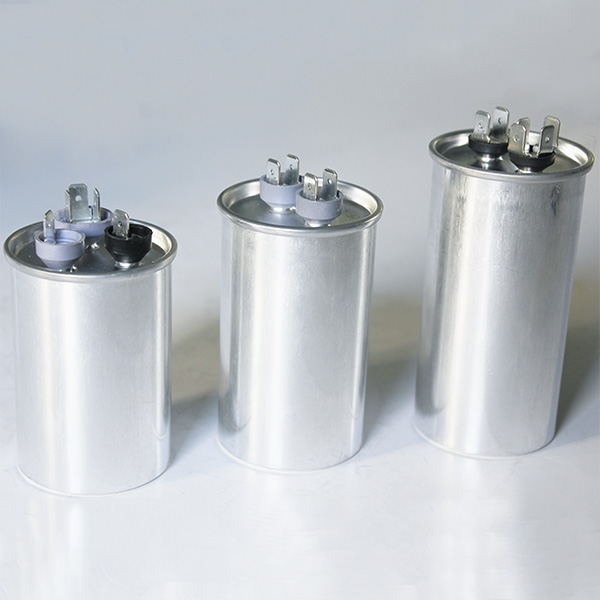

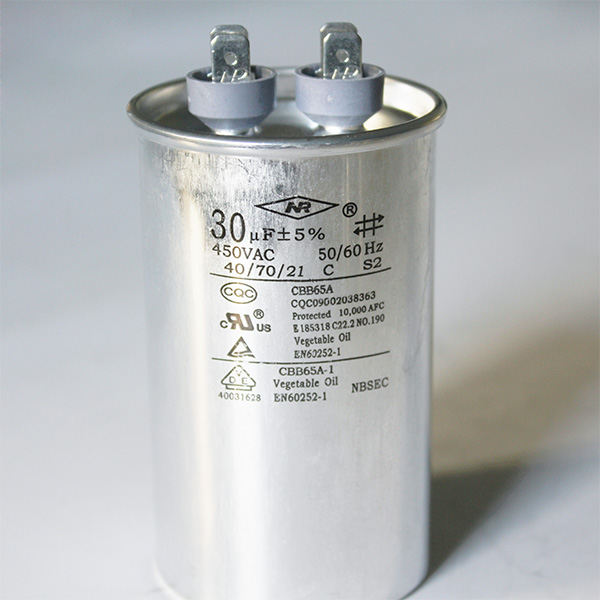

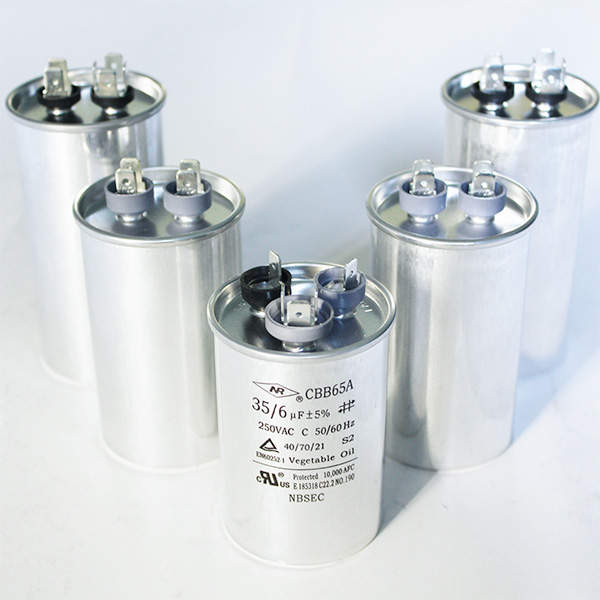

——CBB65A CBB65A-1 AC Metallized Capacitor——
6.8uf 400v electrolytic capacitors
*Special services
1.Customized service, including packaging, label
2.OEM
3.Semi-finished product, such as film, winding elements
Application:
Products are suitable for home appliances,such as air-conditioner,air conditioners,freezers and washing.
Characteristics:
1. It selects high-quality polypropylene coated film as the medium
2. uses the advanced zinc-aluminum coating process
3. Oil-immersed aluminum shell and explosion-proof stucture
4. Products have the male tabs or wire leads and the structures,such as single structure and combined stucture.
5.Products are with characteristics of high temperature,low loss and long life,etc.
6.It had passed the CQC,VDE,UL and CUL certification.
Technical Specification
| Configuration | Aluminum Shell,Oil Filled,Protective Device |
| Temperature | - 40℃~85℃ |
| Capacitance Tolerance | ±5% |
| Dissipation Factor | Tanδ≤0.002(50Hz) |
| Testing Voltage | T-T 2.0Un 2s T-C:2000VAC 2s |
| Rated Frequency | 50/60Hz |
Insulation Resistance | T-T:≥3000mΩ/uF T-C:≥1000mΩ(20℃) |
| Life Class | B、C级 |
——CBB65A CBB65A-1 AC Metallized Capacitor——
6.8uf 400v electrolytic capacitors
*Special services
1.Customized service, including packaging, label
2.OEM
3.Semi-finished product, such as film, winding elements
Application:
Products are suitable for home appliances,such as air-conditioner,air conditioners,freezers and washing.
Characteristics:
1. It selects high-quality polypropylene coated film as the medium
2. uses the advanced zinc-aluminum coating process
3. Oil-immersed aluminum shell and explosion-proof stucture
4. Products have the male tabs or wire leads and the structures,such as single structure and combined stucture.
5.Products are with characteristics of high temperature,low loss and long life,etc.
6.It had passed the CQC,VDE,UL and CUL certification.
Technical Specification
| Configuration | Aluminum Shell,Oil Filled,Protective Device |
| Temperature | - 40℃~85℃ |
| Capacitance Tolerance | ±5% |
| Dissipation Factor | Tanδ≤0.002(50Hz) |
| Testing Voltage | T-T 2.0Un 2s T-C:2000VAC 2s |
| Rated Frequency | 50/60Hz |
Insulation Resistance | T-T:≥3000mΩ/uF T-C:≥1000mΩ(20℃) |
| Life Class | B、C级 |
