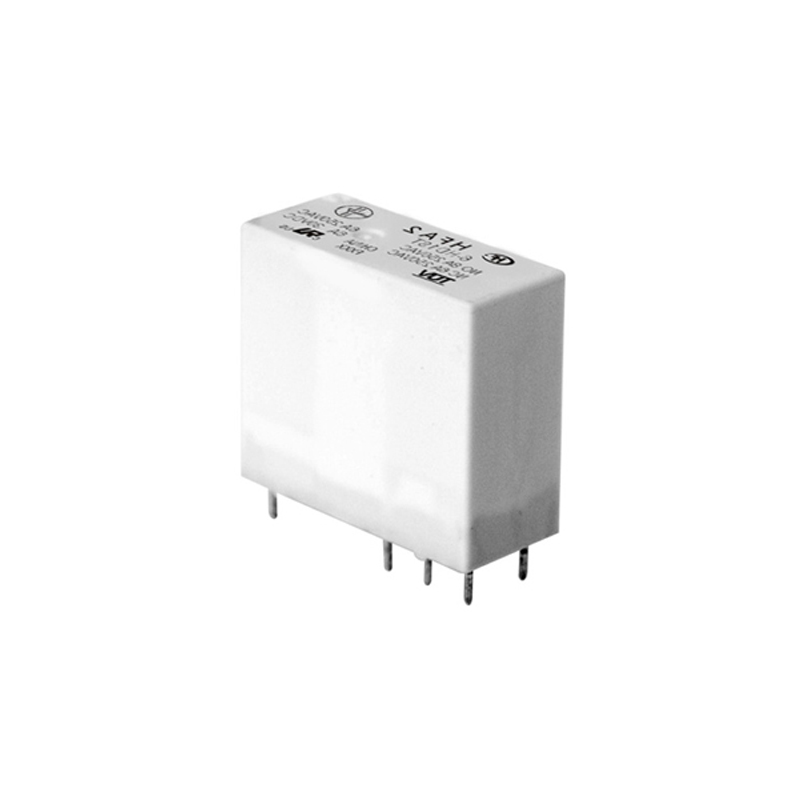

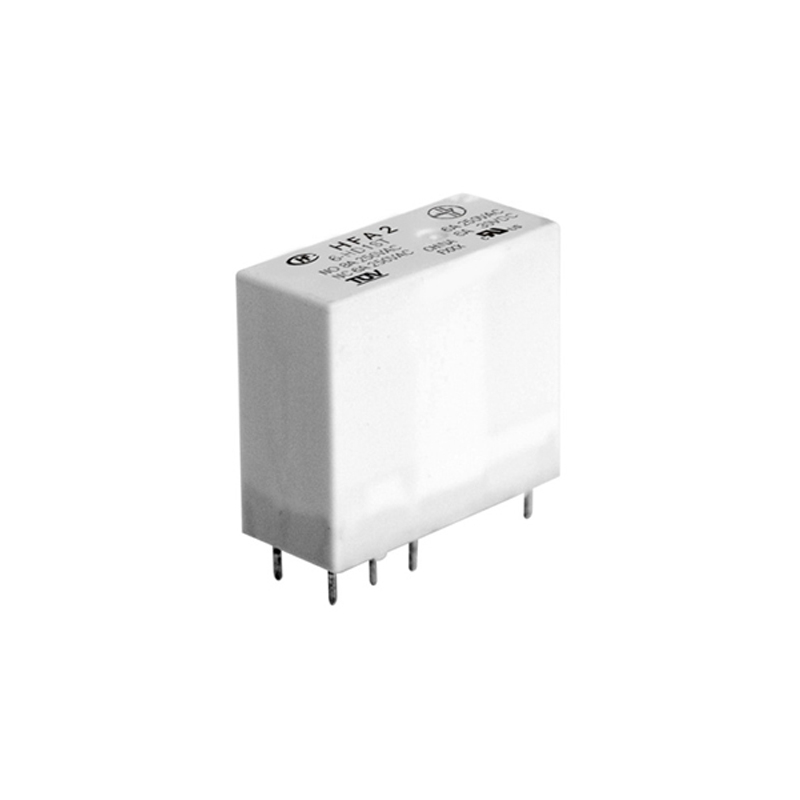

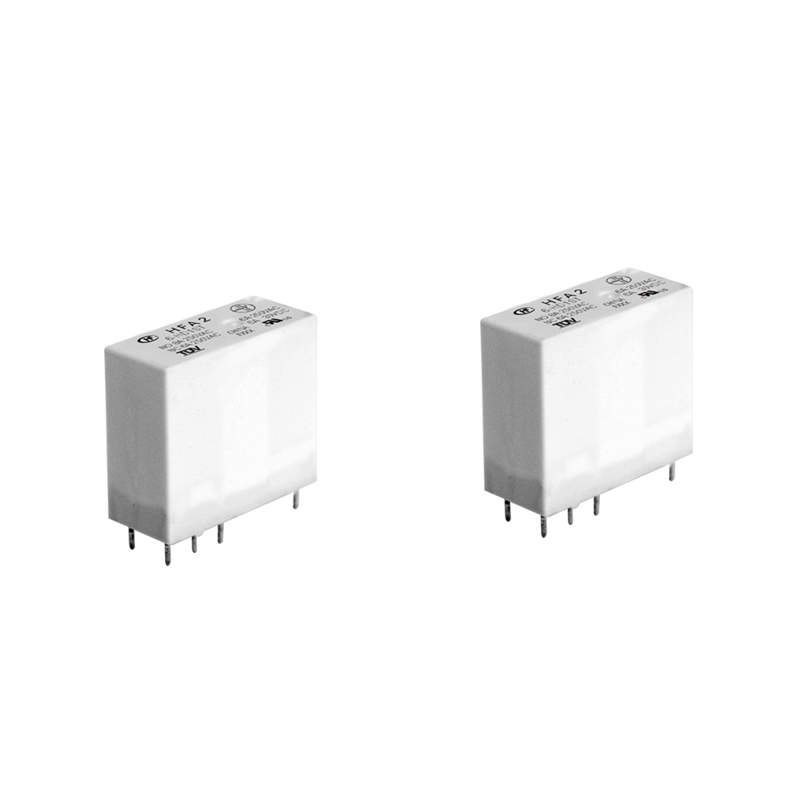

HFA2 appliances Force-Guided Relay

(1)Multi contact arrangements: 2 Form C (2Z type),1NO+1NC (HD1 type), 1NO+1NC (HD2 type)
(2)Forcibly guided contacts according to EN50205
(3)6A switching capability
(4)High insulation capability (1.2 / 50μs):10kV surge voltage between coil & contacts and 6kV between contact sets
(5)UL insulation system: Class F available
(6)Environmental friendly product (RoHS compliant)
(7)Outline Dimensions: (29 x12.6 x25.5) mm
Availability:
Inquire

  • HFA2

  • HF

HFA2 appliances Force-Guided Relay



Features

(1)Multi contact arrangements: 2 Form C (2Z type),1NO+1NC (HD1 type), 1NO+1NC (HD2 type)
(2)Forcibly guided contacts according to EN50205
(3)6A switching capability
(4)High insulation capability (1.2 / 50μs):10kV surge voltage between coil & contacts and 6kV between contact sets
(5)UL insulation system: Class F available
(6)Environmental friendly product (RoHS compliant)
(7)Outline Dimensions: (29 x12.6 x25.5) mm

HFA2 appliances Force-Guided Relay
