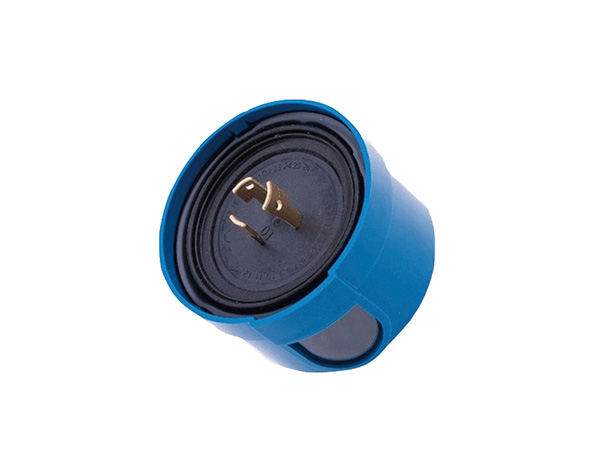

NK-CA/E 10A series High performance twist lock photoelectric switch waterproof grade IP67

The product is suitable for automatic swich control of street lamps,courtyard lamps, corridor lamps, LED lights and other lighting fixtures.Can change according to the light of nature, realize the control function of turning off the light during the day and tuming on the light at night.The work is not afected by the environmental temperature change, with 85- 285v wide voltage applicabilty, with lightning surge protection circuit, to protect their own safety can also protect the lamps from lightning damage.The product complies with the American UL733 standard. It is equipped with a screw-type plug and a screw-type socket, which is easy to update and maintain.

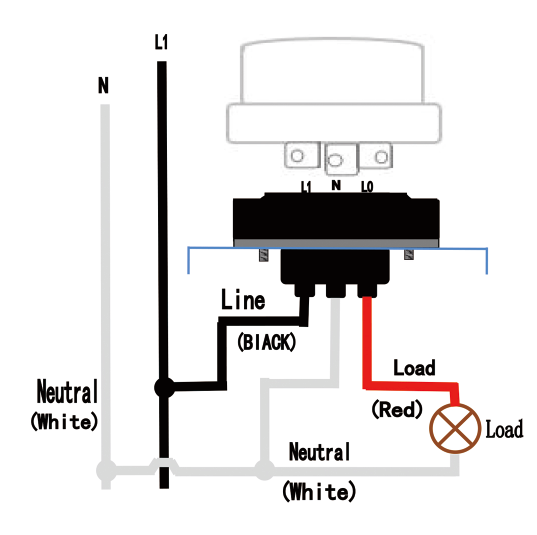

Cut off the power supply, connect the light controller socket according to the figure on the right, screw the light controller onto the light controller socket, connect the power supply, the lamp will automatically light up, and the light controller will enter the working state. Do not put the probe transparent window towards the artificial light source or its opposite, otherwise the light con troller will make the contolled lamp night cycle switch.During the initial test in the daytime, black tape or similar material can be used to cover the transparent window of the probe, and controlled lamps should be lit.Do not use finger cover, because light leakage can still make the light switch to keep the lamp closed.
