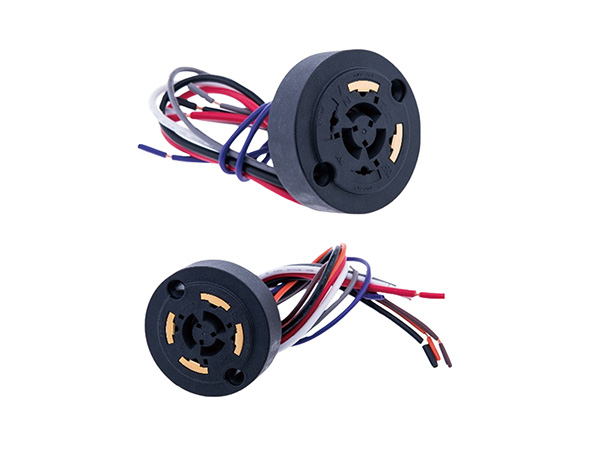

Nk-DR intelligent gold-plated socket series intelligent 5P/7P screw- -type socket

All nk-dr- 105/107 series optical controllers are ansi-compliant,10- 2006 standard screw lock mounts. The products are UL&CUL certifed, ANSI c136.41- -2013 compliant LED lamp multi phase control sockets. This series provides 2 or 4 gold-plated low-oltage contact plates, 2 or 4 signal lines and controller links, .Products with matching waterproof gasket.

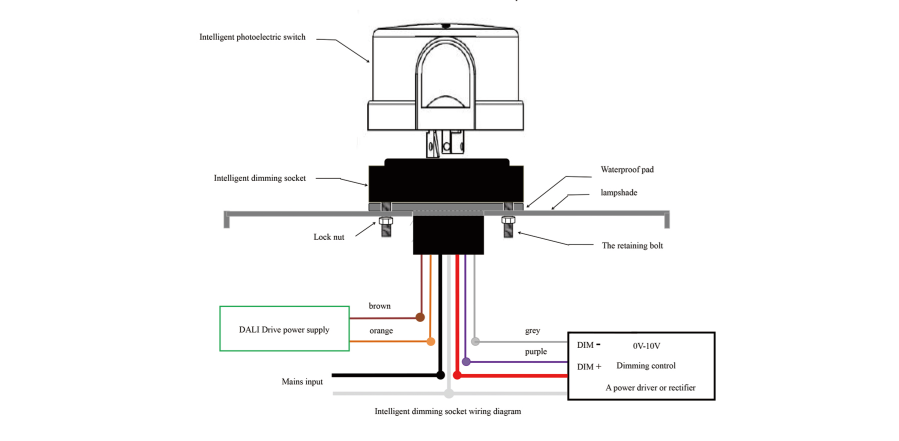

Disconnect the power supply and connect the socket as shown in the right picture. The arrow indicates that the north is at the top of the socket to help the correct direction. Rotate the light controller and lock it clockwise into the socket.When the power is switched on after the initial installation, it imme- diately enters the normal working state During the initial test in the daytime, black tape or similar material can be used to cover the transparent window of the probe, and controlled lamps should be lit.
