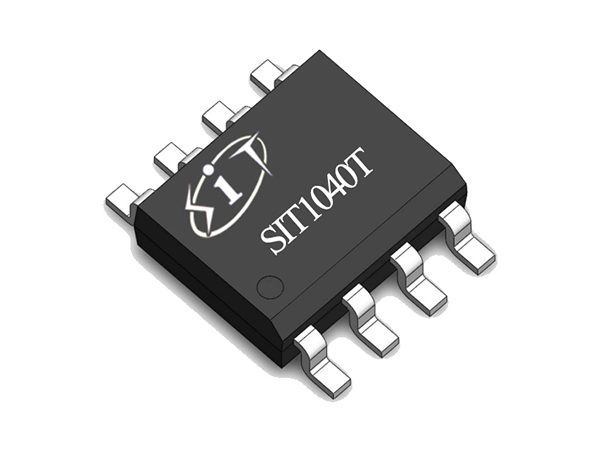

SIT1040T IC CAN transceiver chip replace TJA1040T TJA1040

SIT1040T IC CAN transceiver chip replace TJA1040T TJA1040

Sit1040 is compatible with TJA1040 and tja1044. TJA1040 is a can interface chip applied between CAN protocol controller and physical bus. It can be applied to truck, bus, car, industrial control and other fields. The speed can reach 1Mbps. It has the ability of differential signal transmission between bus and can protocol controller.

Sit1040 is compatible with TJA1040 and tja1044, and has the following characteristics:
Fully compatible with "ISO 11898" standard;
Built in over temperature protection;
Overcurrent protection function;
Explicit timeout function;
Low current standby mode with bus wake-up function (typical value 5 μ a);
Nodes without power on shall not interfere with the bus;
Allow at least 110 nodes to connect to the bus;
High speed can, transmission rate can reach 1Mbps;
High anti electromagnetic interference ability;
Provide hvson8 / dfn3 * 3-8, small shape, no pin package.
