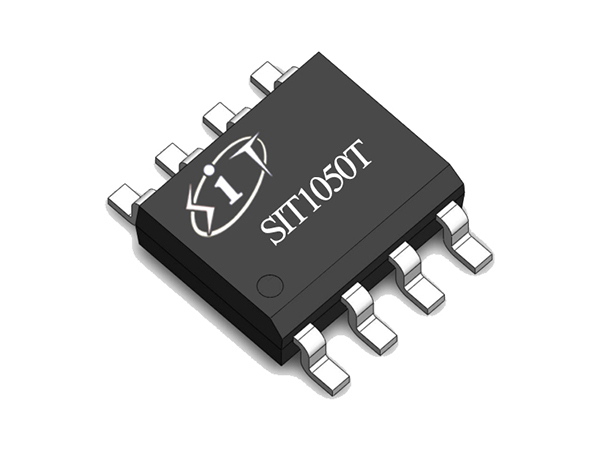

SIT1050T ic can transceiver replace TJA1050T TJA1050

SIT1050T IC CAN transceiver chip replace TJA1050T,TJA1050 SN65HVD1050DR,SN65HVD1050, AMIS30660 TJA1051,TJA1051T TJF1051,TJF1051T

Sit1050 is compatible with tja1050. Sit1050 is a can transceiver chip applied between CAN protocol controller and physical bus. It can be applied to truck, bus, car, industrial control and other fields. Its speed can reach 1Mbps, and it has the ability of differential signal transmission between bus and can protocol controller.

SOLITE sit1050 pin to pin tja1050 has the following characteristics:
Fully compatible with "ISO 11898" standard;
Built in over temperature protection;
Over current protection function;
Explicit timeout function;
Mute mode: no power on node will interfere with the bus;
Allow at least 110 nodes to connect to the bus;
High speed can, transmission rate up to 1Mbps; high anti electromagnetic interference ability;
Hvson8 / dfn3 * 3-8, small form factor, pin less package.

At the same time, sit1050 can be compatible with tja1051 chip in some application fields. In cooperation with capacitor isolation chip, it can form and replace iso1050, tja1052 and other isolation can chips.
