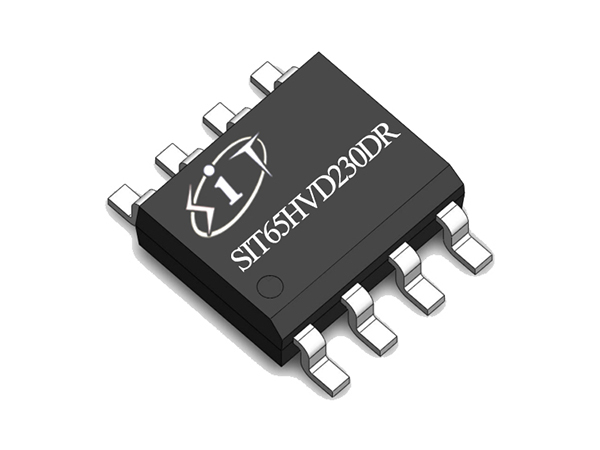

SIT65HVD230DR IC CAN transceiver chip replace SN65HVD230DR SN65HVD230

SIt65hvd230 is a can transceiver chip applied between the CAN protocol controller and the physical bus, and a 3.3V microprocessor, micro controller (MCU) and digital signal processor with CAN controller (DSP) or equivalent protocol controller is used in combination, applied to industrial automation, control, sensor and drive system, motor and robot control, building and temperature control, telecommunication and base station control and status fields. It is suitable for the application of can serial communication physical layer conforming to iso1198 standard.

Sn65hvd230 pin to pin sit65hvd230 has the following characteristics:

3.3V single power supply operation;

Comply with ISO 11898-2 standard;

ESD protection of bus pin exceeds ± 15 kV human body model (HBM);

A bus is allowed to connect up to 120 nodes;

Adjustable drive conversion time, which can improve radiation performance;

Low current standby mode: 650 μ A (typical value);

Designed for data rate up to 1Mbps;

Thermal shutdown protection;

Open circuit fault safety design;

Power on and power off protection of hairless pulse for hot plug application.
